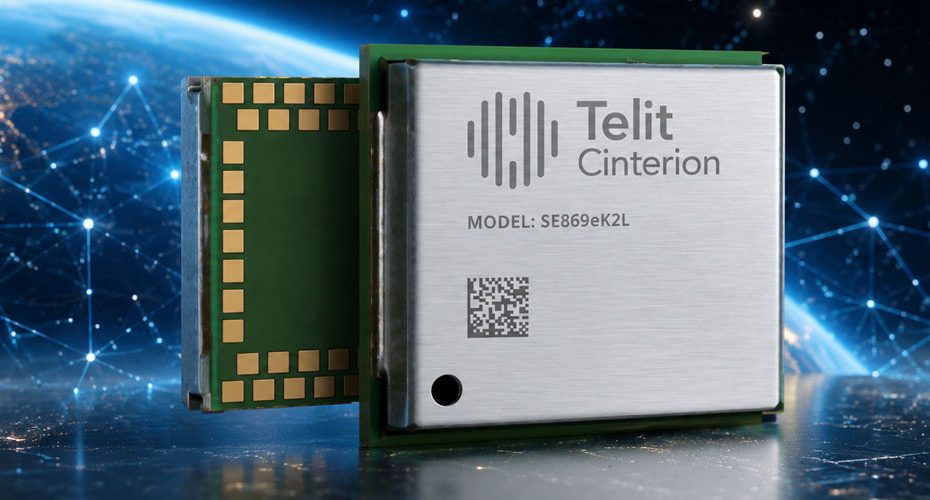

Telit Cinterion has announced the new SE869eK2L GNSS module, a single frequency positioning solution designed to help device manufacturers modernize existing products without costly hardware redesigns. The new module combines support for multiple satellite constellations, improved positioning performance, and full compatibility with established industry footprints, making it particularly attractive for IoT, industrial, and networking applications.
The launch addresses a common challenge faced by OEMs that rely on older L1 GNSS modules. Many manufacturers need access to newer GNSS technology while preserving existing PCB layouts, certifications, and production workflows. The SE869eK2L is designed specifically to bridge that gap.
Multiconstellation GNSS Support
The SE869eK2L is built on the Airoha AG3352 GNSS platform and supports multiple global satellite constellations, including:
- GPS
- GLONASS
- Galileo
- BeiDou
- QZSS
The receiver can track up to four constellations simultaneously, improving satellite availability, positioning reliability, and performance in challenging environments such as urban areas and industrial sites.
According to Telit Cinterion, the module delivers positioning accuracy of approximately 1.5 meters while supporting update rates of up to 10 Hz, making it suitable for applications that require responsive real time location data.
Legacy Compatible Design
One of the most significant advantages of the SE869eK2L is its compatibility with existing hardware designs.
The module uses the widely adopted 12.2 × 16 mm footprint and offers pin to pin compatibility with Telit Cinterion’s previous SL869L-V2 and legacy xL869 series modules. This allows manufacturers to upgrade products with minimal engineering effort while reducing validation costs and shortening development cycles.
The footprint also includes reserved pins intended for future expansion and additional functionality.
Key Specs
| Specification | Telit Cinterion SE869eK2L |
|---|---|
| GNSS Type | Single-frequency L1 GNSS module |
| Satellite Constellations | GPS, GLONASS, Galileo, BeiDou, QZSS |
| Supported Tracking | Up to four constellations |
| Positioning Accuracy | Approximately 1.5 m |
| Update Rate | Up to 10 Hz |
| Form Factor | 12.2 × 16 mm |
| Platform | Airoha AG3352 |
| Voltage Options | 1.8 V or 3.3 V hardware variants |
| Legacy Compatibility | Pin-to-pin compatible with SL869L-V2 and legacy xL869 modules |
| Timing Features | TRAIM, satellite hold, self-survey mode |
| Timing Output | Synchronization output with ±7 ns jitter |
| Software Compatibility | Dedicated firmware variant for Windows Location Services |
| Wi-Fi Support | Wi-Fi navigation mode for AFC requirements in Wi-Fi 6E and Wi-Fi 7 routers |
| Target Applications | Asset tracking, fleet management, smart infrastructure, cell tower synchronization, industrial equipment, Wi-Fi 6E / 7 routers |
| Sample Availability | Expected in mid-2026 |
| Mass Production | Planned for Q4 2026 |
Timing and Synchronization Features
Beyond positioning, the SE869eK2L includes dedicated firmware options for timing applications.
The module supports advanced timing technologies such as:
- TRAIM (Timing Receiver Autonomous Integrity Monitoring).
- Satellite hold mode.
- Self survey mode.
- Windows Location Services support.
- Precision timing output with ±7 nanosecond jitter.
These capabilities make the module suitable for telecommunications infrastructure, network synchronization, and critical timing applications where GNSS is used as a reference source.
Wi-Fi 6E and Wi-Fi 7 AFC Support
An interesting addition is support for Wi-Fi navigation mode, which helps equipment manufacturers comply with Automated Frequency Coordination (AFC) requirements associated with Wi-Fi 6E and Wi-Fi 7 deployments.
This feature positions the SE869eK2L as a practical option for next generation networking equipment, including enterprise routers and wireless infrastructure products that require location awareness for regulatory compliance.
Target Applications
Telit Cinterion is positioning the module for a broad range of connected device applications, including:
- Asset tracking systems.
- Fleet management platforms.
- Smart infrastructure deployments.
- Cellular network synchronization.
- Industrial automation equipment.
- Wi-Fi 6E and Wi-Fi 7 routers.
- IoT gateways and edge devices.
The company also highlights integration benefits for customers already using Telit Cinterion cellular modules, allowing OEMs to source both connectivity and positioning components from a single supplier.
Market Perspective
The SE869eK2L reflects a growing trend within the GNSS industry where manufacturers are focusing not only on raw positioning performance but also on simplifying product migration paths for OEMs. While dual frequency and centimeter level GNSS solutions continue to dominate high precision markets, a large segment of industrial and IoT devices still requires affordable, power efficient, meter level positioning.
By combining modern multiconstellation support, timing capabilities, and footprint compatibility with older designs, Telit Cinterion is targeting this high volume segment where engineering simplicity often matters as much as positioning accuracy.
About Telit Cinterion
Telit Cinterion is a global provider of IoT connectivity, positioning, and wireless communication technologies. The company has more than 30 years of experience in the IoT sector and offers cellular modules, GNSS receivers, connectivity services, edge software, cloud platforms, and device management solutions. Telit Cinterion serves thousands of IoT deployments worldwide across industrial, transportation, infrastructure, enterprise, and smart city markets, with headquarters in Boca Raton, Florida and operations spanning North America, Europe, and Asia.
